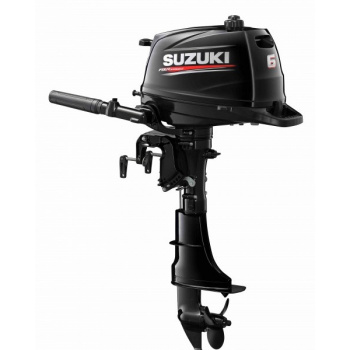

Compact and lightweight (24.0Kg*1)—Easy operation characteristic of portable outboards DF6A, DF5A and DF4A. A new generation fully reborn with style.
| MODEL |
DF6A |
|---|
| RECOMMENDED TRANSOM HEIGHT mm |
S:381, L:508 |
|---|
| STARTING SYSTEM |
Manual |
|---|
| WEIGHT kg *5 |
S:24, L:25 |
|---|
| ENGINE TYPE |
OHV |
|---|
| FUEL DELIVERY SYSTEM |
Carburetor |
|---|
| NO. OF CYLINDERS |
1 |
|---|
| PISTON DISPLACEMENT cm3 |
138 |
|---|
| BORE ×STROKE mm |
60.4 X 48 |
|---|
| MAXIMUM OUTPUT kW |
4.4 |
|---|
| FULL THROTTLE OPERATING RANGE rpm |
4,750-5.750 |
|---|
| STEERING |
Tiller |
|---|
| CHOKE |
Manual |
|---|
| OIL PAN CAPACITY Lit. |
0.7 |
|---|
| FUEL TANK CAPACITY Lit. |
Integral 1.0 |
|---|
| IGNITION SYSTEM |
Digital CDI |
|---|
| ALTERNATOR |
12V 5A (Option) |
|---|
| ENGINE MOUNTING |
Bushing Type |
|---|
| TRIM METHOD |
Manual Trim and Tilt |
|---|
| GEAR RATIO |
1.92:1 |
|---|
| GEAR SHIFT |
F-N-R |
|---|
| EXHAUST |
Above Prop Exhaust |
|---|
PROPELLER SELECTION (Pitch) *6
All propellers are the 3-blade type |
6"-7" |
|---|
