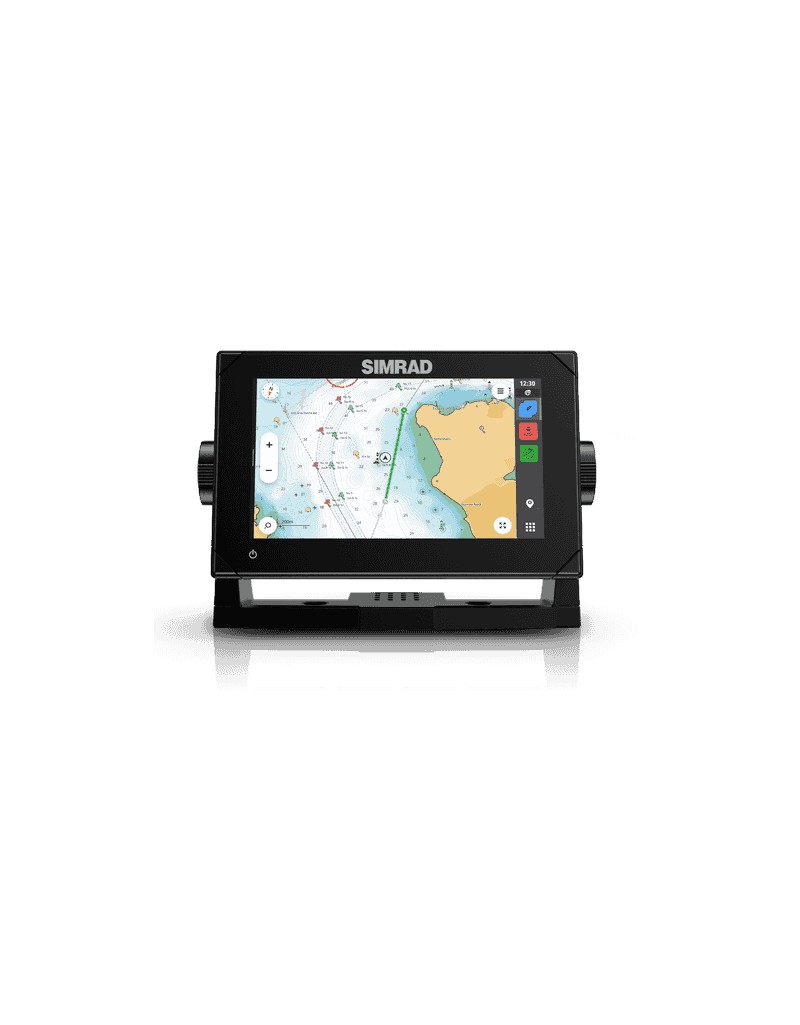

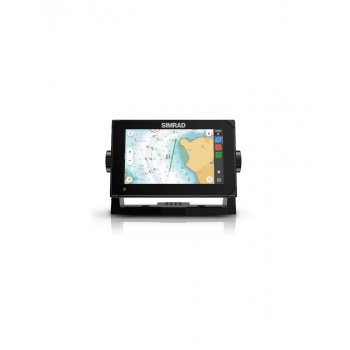

NSX 3009 No Transducer

-6%1.796,76 €1.688,95 €

NSX 3009 - Smart Chartplotter / fishfinder. No Transducer. No Chart. 9-inch SolarMAX™ high definition display, Built-in 1 kW echosounder, GPS, and WIFI. A next-generation C-MAP® DISCOVER™ X or REVEAL X™ chart card is required.

Specifications:

Display

Size and Type 9" SolarMax IPS Touchscreen display for wide viewing angles, extreme clarity and sunlight viewability with polarized sunglasses
Resolution 1280 x 720 px
Viewing Angles 85° (top, bottom, left, and right)
Screen Brightness >1200 nits
Backlight Color White

Power

Supply Voltage 12 V DC (10-17 V DC min-max)
Power Consumption max 18.8 W (1360 mA at 13.8 V)
Recommended Fuse Rating 3A

Physical

Dimensions W x H x D With bracket: W: 263.0 mm (10.35") x H: 172.6 mm (6.80") x D: 80.6 mm (3.17") No bracket, no suncover: W: 239.0 mm (9.40") x H: 148.5 mm (5.85") x D: 80.6 mm (3.17") No bracket, with suncover: W: 243.7 mm (9.59") x H: 153.4 mm (6.03") x D: 85.6 mm (3.37")
Weight 1.2 kg (2.6 lbs)
MountingType Bracket (supplied), panel mount or flush mount
Compass Safe Distance 50 cm (1.7 ft)

Environmental

Operating Temperature Range -15°C to 55°C (5°F to 131°F)
Storage Temperature Range -20°C to 60°C (-4°F to 140°F)
Waterproof rating IPx6 and IPx7
Humidity IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr)
Shock Vibration 100,000 cycles of 20 G

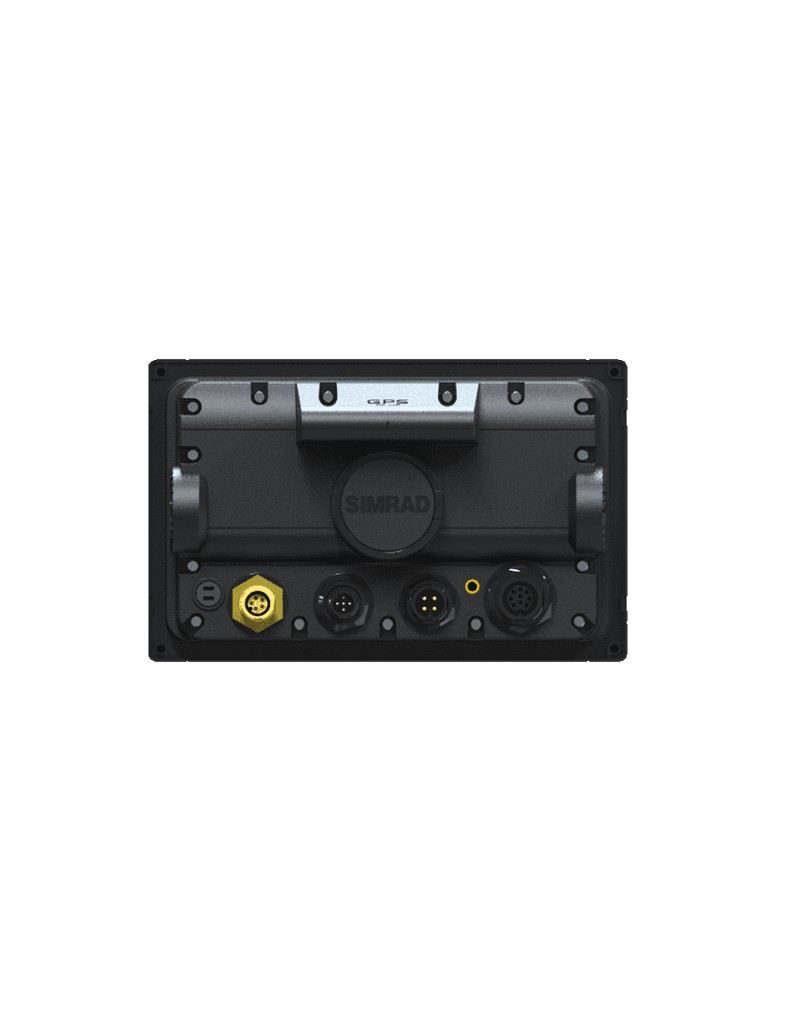

Interface and connections

Interface Multi-touch screen
Sonar Compatibility One 9 pin Xsonic 1 kW Sonar port. Single-channel CHIRP, 50/200 kHz, HDI, Active Imaging
Ethernet 1 port (5-pin connector)
NMEA 2000 1 x NMEA 2000 Micro-C port, 1 LEN
NMEA 0183 No
USB 1 port (USB A) Output: 5 V DC, 1.5 A
External Storage 1 MicroSD slot, 1 port (USB A)
GPS Internal, 10Hz, WASS, MSAS, EGNOS
GPS Correction 10 Hz high-speed update (internal) WASS, MSAS, EGNOS, GLONASS
GPS Position Accuracy Horizontal Accuracy 3 m (9.8 ft)
GPS Receiver Channels 32 Channels
GPS Update rate 10Hz
J1939 No
ConnectivityPcConnectivity No
WiFi IEEE 802.11b/g/n
Bluetooth Bluetooth 4.0 with support for Bluetooth Classic
Languages English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Italian, Dutch, Norwegian, Portuguese (Brazil), Portuguese (Portugal) Swedish
Charts Supported C-MAP Discover X, C-MAP Reveal X
Radar Compatibility Halo Dome radars, Halo open array radars
Weather No
AIS Receive AIS data over NMEA 2000
Digital Switching Simrad COMMAND DDS only on release to market

Warranty

Warranty Period              2 Years
Brand: SIMRADSIMRAD
Add to cart
The add to cart button will appear once you select the values above

Delivery in 7-14 days
